Egg paper tray technology and classification
The production process of egg trays is as follows:
1. First make and process the egg tray mold. According to the requirements or sample standards, first make the egg tray blister mold. Under normal conditions, gypsum is used to make the blister packaging mold, but wood carving and metal carving products are also used as molds. After the plaster mold is made, let it dry completely naturally or dry it, and then use a 1-2 mm drill to drill many small holes in the low recesses that will not affect the appearance of the product packaging according to the specific convex and concave conditions of the product surface. For products such as boxes, some small holes must be drilled around the edges so that the air can be extracted during blister production. After drilling the holes in the mold, the plaster mold must be hardened. The hardening method is to use concentrated Soak in alum saturated solution and dry.
2. After the egg tray mold is completely processed and dried, install the egg tray mold on the upper iron plate of the vacuum chamber, then load the plastic sheet into a suitable standard size according to the size of the egg tray mold, and then place the sheet into a heated wooden cabinet. inside, fix it thoroughly, and then place the wooden cabinet and the plastic sheet on a constant temperature furnace for softening. Paper tray packaging
3. Place the softened plastic sheet together with the wooden cabinet in the vacuum chamber, turn on the suction switch, and suck the air in the vacuum chamber clean. After the plastic sheet cools, you will get a concave egg tray that is the same as the mold.
4. Clean up the egg tray. After the produced egg trays are trimmed and cleaned, the finished egg trays are then packaged in cartons and shipped.
Egg trays generally refer to packaging materials used to hold eggs, duck eggs and other eggs. Their main function is to absorb shock and facilitate transportation and carrying. According to different manufacturing materials, they can be divided into paper pulp egg trays, plastic egg trays, etc. According to the number of eggs held, they can be divided into single egg trays and plated egg trays.
Paper pulp egg trays are mostly made of recycled paper pulp and processed by molding machines. Because of its simple manufacturing process, low cost and no environmental pollution, it is called "green" packaging and is the most common type of egg tray in our daily life.
Plastic egg trays use plastic as the material, but they can produce colorful and exquisitely shaped egg trays. Because of its higher cost, it is generally used more in supermarkets.
Single egg trays are generally used at home or in Western restaurants. They are cute in shape and easy to use, and can effectively prevent eggs from rolling off the table. It is an alternative small tableware for fashionable home.
The plated egg tray can hold dozens of eggs in one plate depending on the size, and it is also the most commonly used egg packaging tool.
HUATAO PROVIDES PULP MOLDING EQUIPMENT & PLASTIC MOLD EQUIPMENT & EGG TRAY MACHINE
Including:
Pulp Mold Machine
Egg Tray Molding Machine
Egg Carton Molding Machine
Fruit Tray Molding Machine

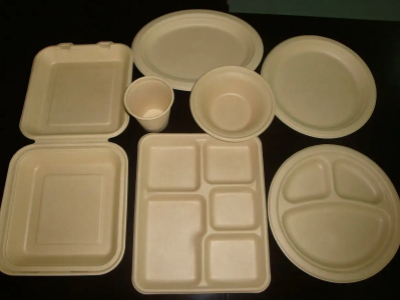

Molded Fiber Tableware Machine
Molded Pulp Machine
Hot Press Shaping Machine
Mold For Pulp Molded Machine
Pulp Mold Stacker
PE Rope Pulp Mold Packing Machine
Whether you need help with equipment selection, process optimization, or design customization, our team can help. We have the expertise and knowledge to analyze your project needs, identify challenges and develop innovative solutions.
